PQ Core

PQ core

PQ series MnZn transformer core are commonly used for filters for applied in the linear filter,choke,pulse transformer,drive transformer and various kinds of inductors and transformers etc. It is a polycrystal, sintered material with high electrical resistivity.
Availability:
Quantity:

PQ series MnZn transformer core are commonly used for filters for applied in the linear filter,choke,pulse transformer,drive transformer and various kinds of inductors and transformers etc. It is a polycrystal, sintered material with high electrical resistivity. The high resistance of ferrite makes eddy current losses extremely low at high frequencies. Therefore, unlike other magnetic components, ferrite can be used at considerably high frequencies.This PQ core is made by MnZn material which permeability from 1800 to 15000.

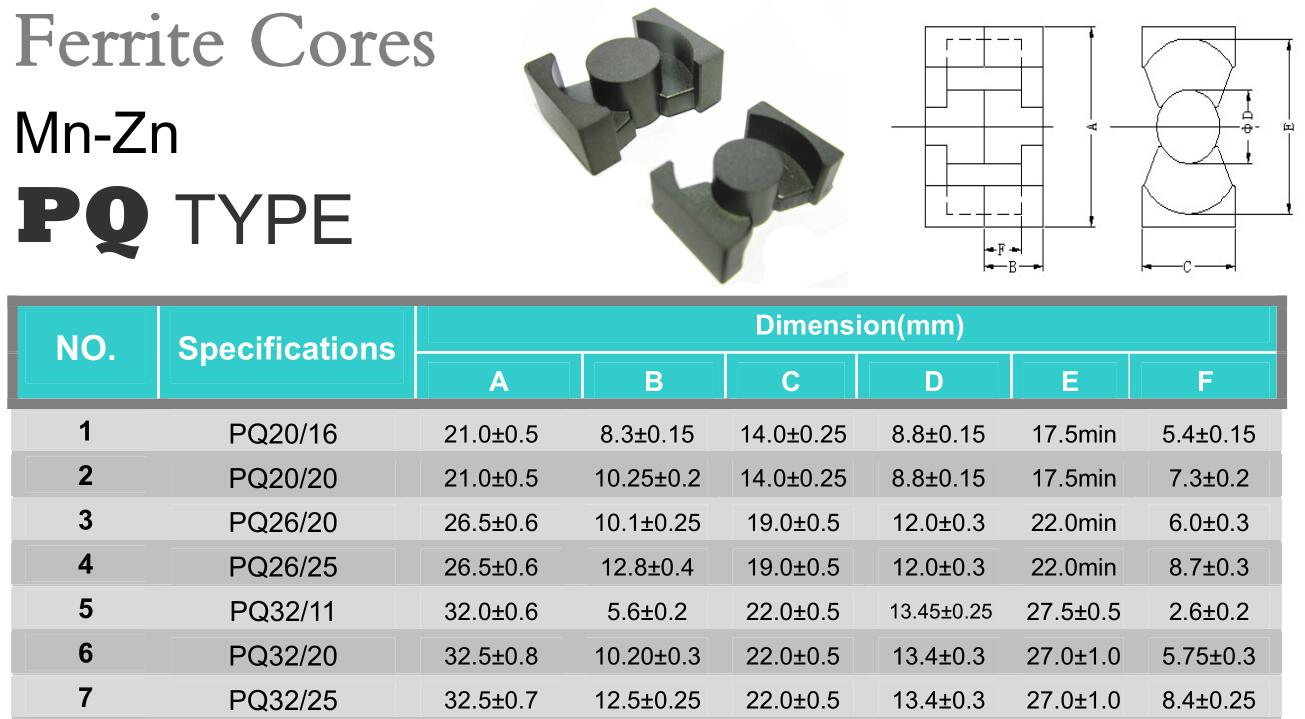

QQ截图20191120140256

QQ截图20191120140327
