Magnetic Properties of Ferrite Core: Understanding Hysteresis Loop and Permeability

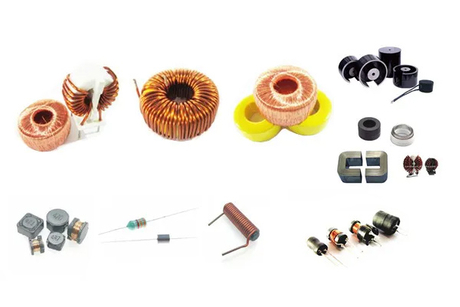

Ferrite cores are magnetic materials used in electronic components such as transformers, inductors, and power supplies. Understanding the magnetic properties of ferrite cores is essential for designing and optimizing these electronic circuits. This article will explain two critical concepts related to the magnetic properties of ferrite cores: hysteresis loop and permeability.

Hysteresis Loop

The hysteresis loop is a graphical representation of the magnetic behavior of a material when it is exposed to an external magnetic field. The loop shows the relationship between the magnetic flux density (B) and the magnetic field strength (H) applied to the material. The shape of the hysteresis loop depends on the magnetic properties of the material.

For ferrite cores, the hysteresis loop is typically narrow and elongated, which indicates that they have a low coercive force (Hc). Coercive force is the measure of how resistant a material is to changes in its magnetic state. Ferrite cores have low coercive force, which means they can be easily magnetized and demagnetized. This makes them ideal for use in electronic components, as they can quickly respond to changes in current and voltage.

Permeability

Permeability is the measure of how easily a material can be magnetized. Ferrite cores have high permeability, which means they can store more magnetic energy per unit volume than other magnetic materials. This property makes ferrite cores an excellent choice for use in transformers and other electronic components that require efficient energy transfer.

The permeability of ferrite cores varies depending on the frequency of the magnetic field applied to the material. At low frequencies, ferrite cores have high permeability, which makes them suitable for use in power transformers. However, at high frequencies, the permeability of ferrite cores decreases, making them less effective for use in high-frequency applications. In these cases, alternative magnetic materials such as powdered iron or laminated cores may be more suitable.

Conclusion

In summary, understanding the magnetic properties of ferrite cores is essential for designing and optimizing electronic circuits. The hysteresis loop and permeability are two critical concepts that must be considered when selecting and using ferrite cores in electronic components. Ferrite cores' low coercive force and high permeability make them an excellent choice for use in transformers, inductors, and power supplies, where efficient energy transfer is essential.
